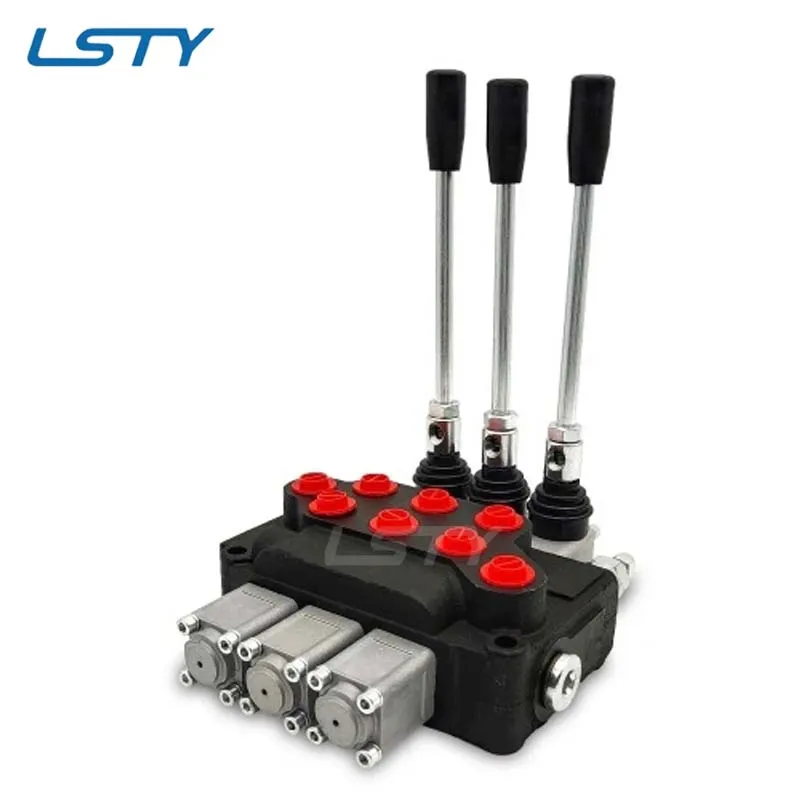

Tractor Bucket Control Valve Adjustment

In the demanding world of agricultural machinery, the subtle interplay between operator intention and mechanical response hinges on one critical component: the tractor bucket control valve. This unassuming hydraulic gatekeeper governs every lift, tilt, and curl of your loader, transforming hydraulic pressure into precise movement. For operators wrestling with sluggish response, bucket drift, or inconsistent lifting power, mastering valve adjustment isn't mere maintenance—it's reclaiming operational sovereignty. Companies like HEBEI LONGSHENGTENGYU PUMP INDUSTRY CO., LTD (LSTY) understand this intimately. With over two decades specializing in hydraulic solutions for agricultural equipment, LSTY engineers valves knowing that a micron-level misalignment can cascade into costly field delays. Their philosophy—"power products, ensured quality"—manifests in components designed for adjustability, recognizing that perfect factory calibration must adapt to real-world wear.

Tractor Hydraulic Control Valve Mechanics

At its core, a tractor hydraulic control valve operates as the neural junction between your joystick and bucket cylinders. When you nudge the lever left, pressurized oil routes through specific valve galleries to extend or retract hydraulic rams. Three critical elements demand periodic adjustment:

• Spool Centering: The heart of responsiveness. A perfectly centered spool ensures neutral position truly stops fluid flow. Wear or contamination causes "neutral drift," where buckets slowly sag despite the lever being centered. LSTY valves undergo computerized centering checks during manufacturing, leveraging their CAT testing rigs to achieve micron-level precision.
• Damping Mechanisms: These control movement speed. Over-tightened damping creates jerky operation; too loose causes bucket "bounce."
• Linkage Synchronization: Mechanical linkages translate lever motion into spool displacement.
•

Precision matters because even minor tractor control valve misadjustment wastes hydraulic power. Fluid bypassing a poorly seated spool forces the pump to work harder, increasing fuel consumption and generating excess heat. LSTY’s patented spool designs minimize internal leakage paths, a benefit amplified during adjustment.

Step-by-Step Tractor Bucket Control Valve Adjustment Protocol

Safety First: Park on level ground, lower bucket fully, engage parking brake, and relieve hydraulic pressure by cycling controls after shutdown.

• Neutral Position Calibration:
• Locate the centering springs or detent mechanism under the valve cover.
• Loosen locknuts on centering screws. Adjust in quarter-turn increments.
• Test: Start tractor (low RPM), center lever. Bucket should hold position without drift. If drifting, adjust opposing screws equally. LSTY’s laser-etched adjustment scales simplify this process.
• Flow Rate andDamping Adjustment:
• Identify flow control knobs (usually labeled "Tilt Speed" or "Lift").
• For smooth grading: Turn clockwise to slow bucket movement.
• For heavy digging: Open counter-clockwise for faster cycle times.
• Note: Excessive flow causes hydraulic hammer—damaging hoses and cylinders.
• Linkage andLever Alignment:
• Disconnect linkage pins. Center joystick mechanically.
• Verify valve spool is visually centered using alignment marks.
• Reconnect linkages without preload tension. LSTY’s joystick kits include slotted brackets for shim-free alignment.
• Pressure Relief Verification:
• Activate function against relief pressure (consult manual).
• Adjust relief valve if pressure deviates from specs. LSTY valves feature tamper-proof seals protecting factory relief settings.
•

Troubleshooting Common Tractor Control Valve Issues

• Symptom: Bucket drifts down overnight.
  Cause: Internal valve leakage or cylinder seal failure.
  LSTY Solution: Their valves incorporate multi-stage wiper seals tested against ISO particle contamination standards.
• Symptom: Jerky bucket movement.
  Cause: Air ingestion or sticky spool.
  Fix: Bleed air from cylinders. If persistent, flush valve with hydraulic oil. LSTY’s ultra-smooth spool finishes resist varnishing.
• Symptom: Lever requires excessive force.
  Cause: Binding linkages or contaminated pilot system.
  Adjustment: Lubricate pivot points. Check pilot filter (if equipped).
•

Tractor Hydraulic Control Valve: LSTY’s Engineering Edge in Hydraulic Control

• Patented Spool Geometry: LSTY holds multiple utility patents for asymmetric spool notches that reduce pressure surges during directional shifts, extending cylinder life.
• Customization: Offering manual, pilot-operated, or solenoid valves with OEM-equivalent mounting patterns and porting.
• Testing Rigor: Every valve undergoes CAT computer-controlled testing.
•

FAQs about Tractor Hydraulic Control Valve Adjustment

What tools are essential for tractor bucket control valve adjustment?

Basic metric wrenches, pressure gauge, and manufacturer’s spec sheet. LSTY provides adjustment tools with their premium valve kits.

How often should I adjust my tractor bucket control valve?

Annually operating hours. Frequent drift indicates wear requiring rebuild or replacement.

Can improper adjustment damage my hydraulic pump in tractor bucket control valve?

Yes. Over-tightening relief valves strains pumps. Undetected internal leakage forces pumps to compensate continuously, causing overheating.

Why does my tractor bucket control valve get noisy after adjustment?

Likely air entrapment. Persistent noise suggests cavitation—check inlet strainers.

Does LSTY offer tractor bucket control valve rebuilding services?

Yes. Their integration center provides reconditioning using genuine seals and computerized calibration.

Adjusting a tractor bucket control valve transcends mechanics—it’s calibrating confidence in every load. When buckets respond predictably to fingertip commands, productivity surges while downtime plummets. HEBEI LONGSHENGTENGYU PUMP INDUSTRY CO., LTD embodies this precision philosophy. From their flexible machining centers crafting spools within two-micron tolerances, to their four-engine operational model ensuring rapid technical support, LSTY transforms valve adjustment from a chore into a strategic advantage. Their global presence across agricultural hubs underscores a commitment shared by every technician reaching for an adjustment wrench: In the symphony of hydraulics, every note of pressure must obey the conductor’s baton.
