Hydraulic Internal Gear Pump: High Pressure, Low Noise?

If you’ve been hunting for a hydraulic internal gear pump, you’ve probably noticed a split in the market: classic external gear units for rugged simplicity and internal gear pumps for low-noise, high-efficiency duties. The NSH Gear Pump Nsh 10M-3 I recently reviewed sits in the first camp (external gearing), yet it competes head-on in many mobile hydraulic setups where buyers weigh price, robustness, and availability over ultimate sound and efficiency. Real-world buyers do this all the time—so let’s unpack the landscape honestly.

Industry trend check: demand for quieter, denser power packs is climbing, especially as electrified machinery (and tighter noise regs) nudge fleets toward hydraulic internal gear pump designs. However, for cost-sensitive farm loaders, compact excavators, and municipal attachments, value-forward external gear pumps like the NSH series remain popular. Many customers say they just need something that lasts, doesn’t whine too much, and arrives on time. Fair enough.

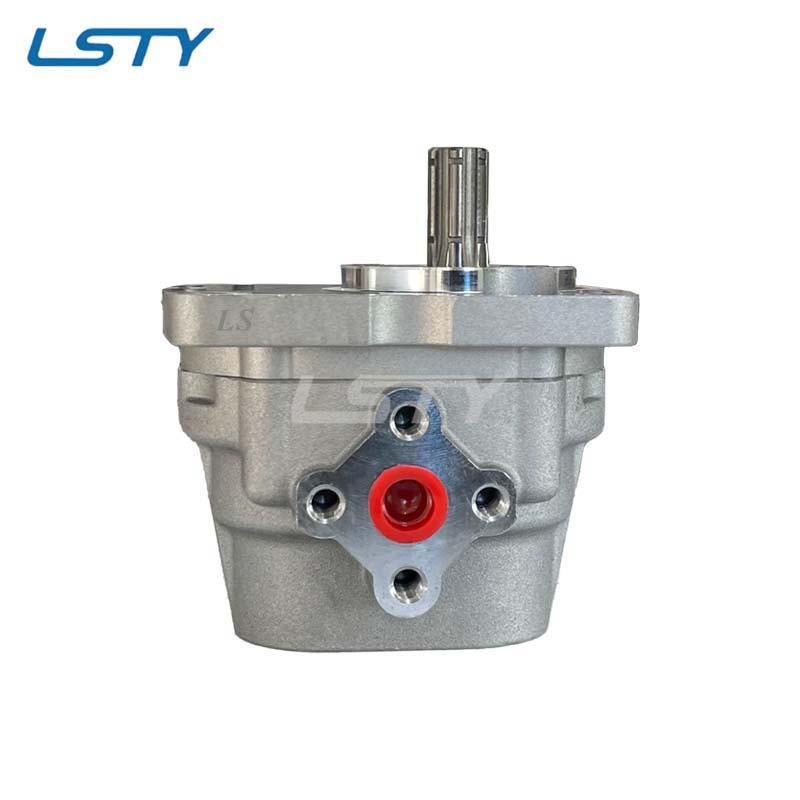

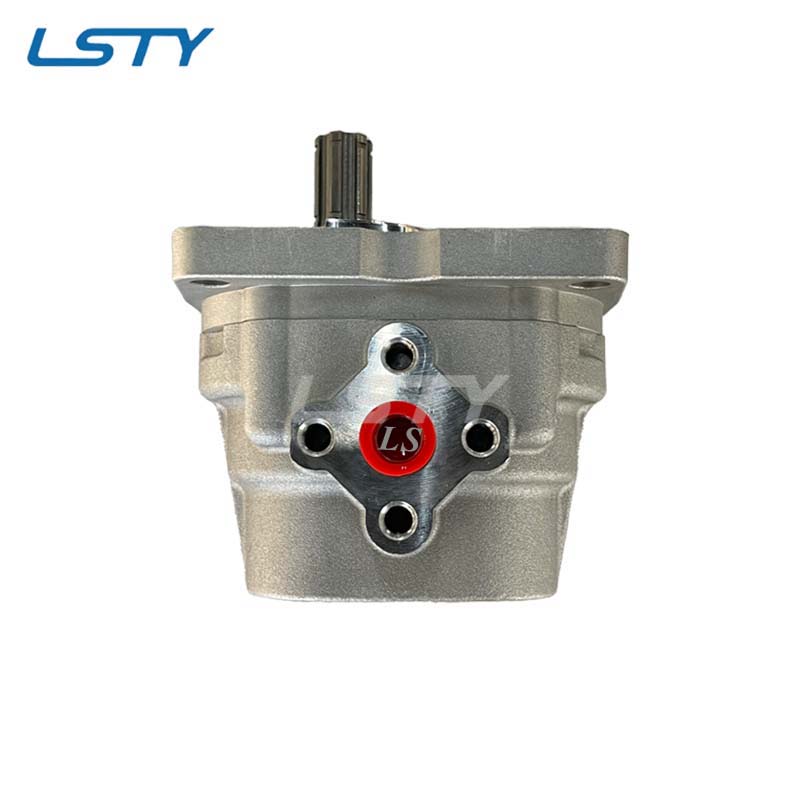

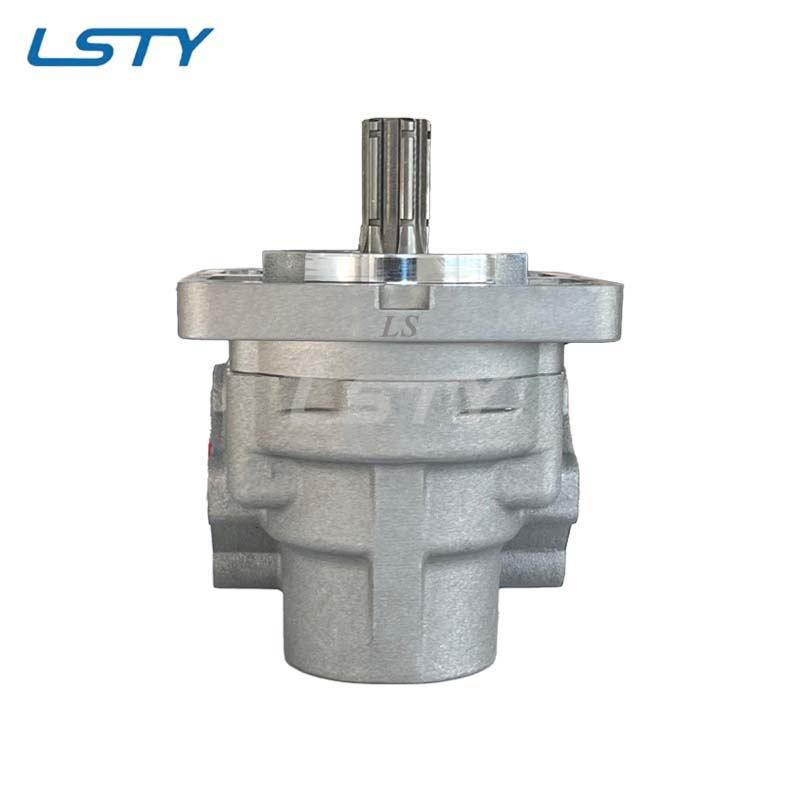

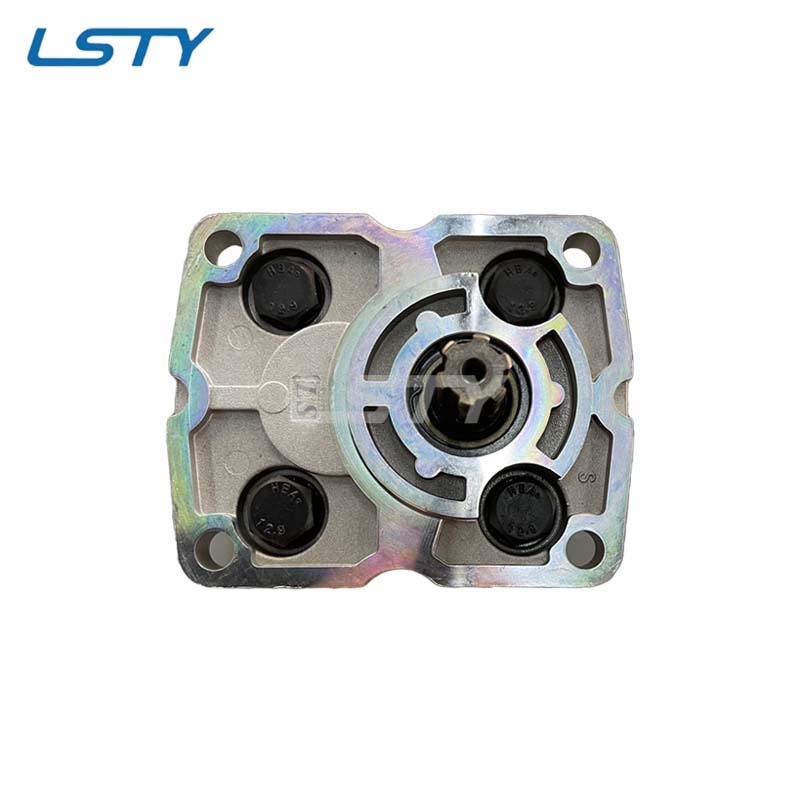

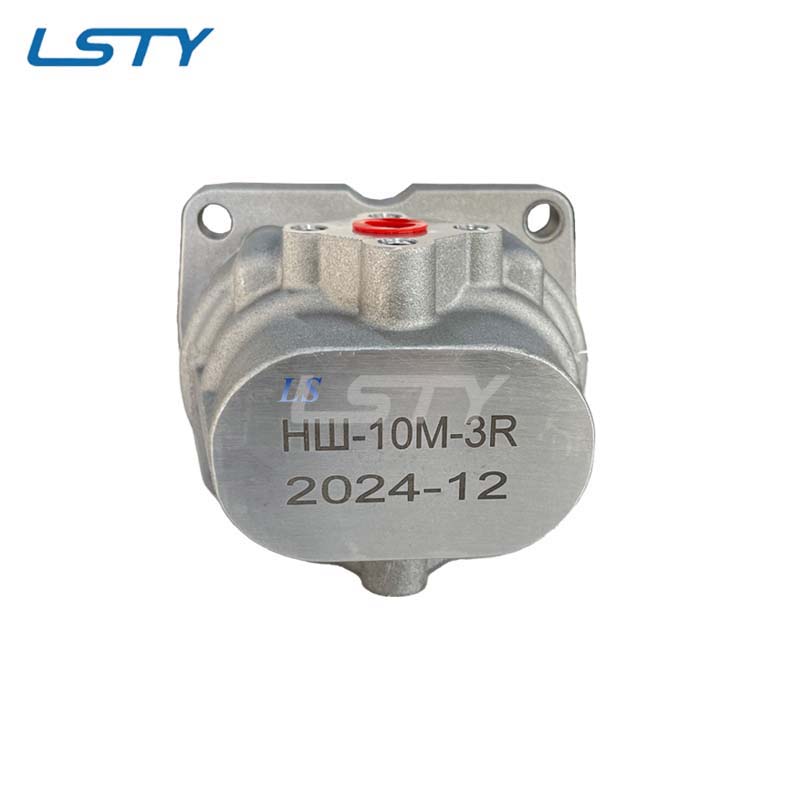

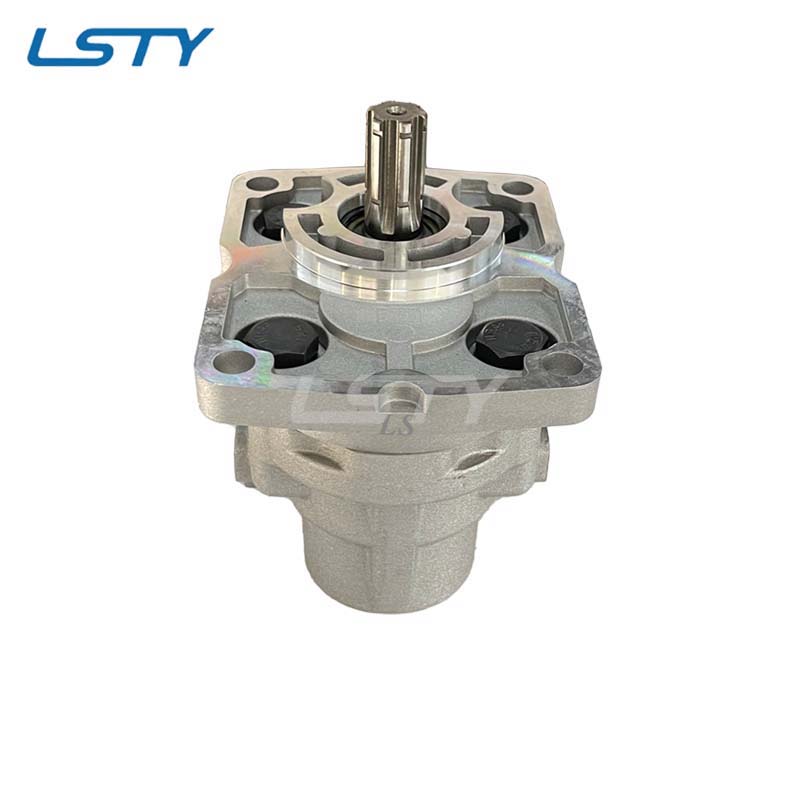

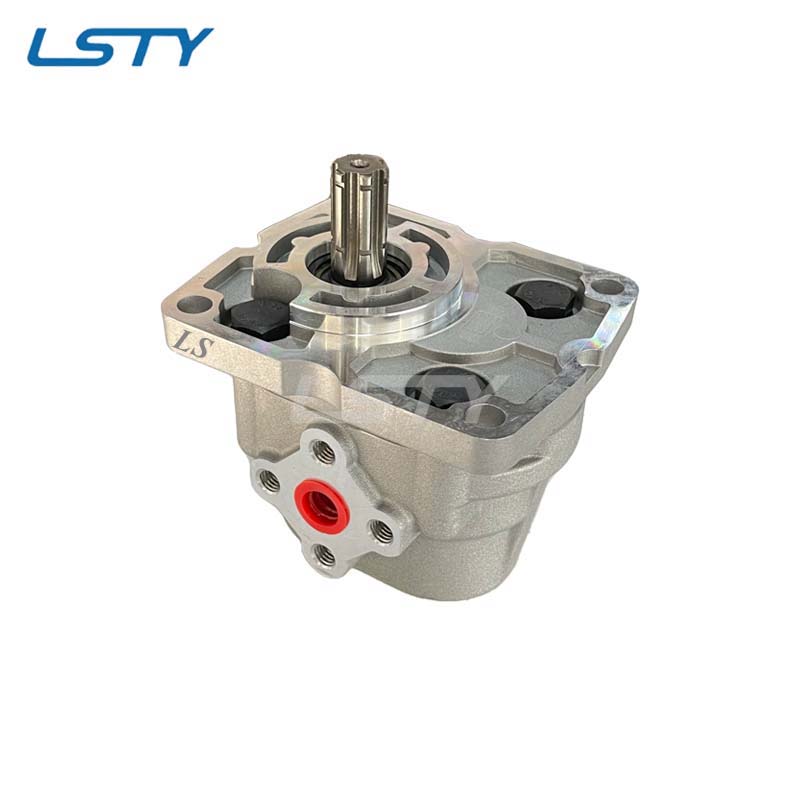

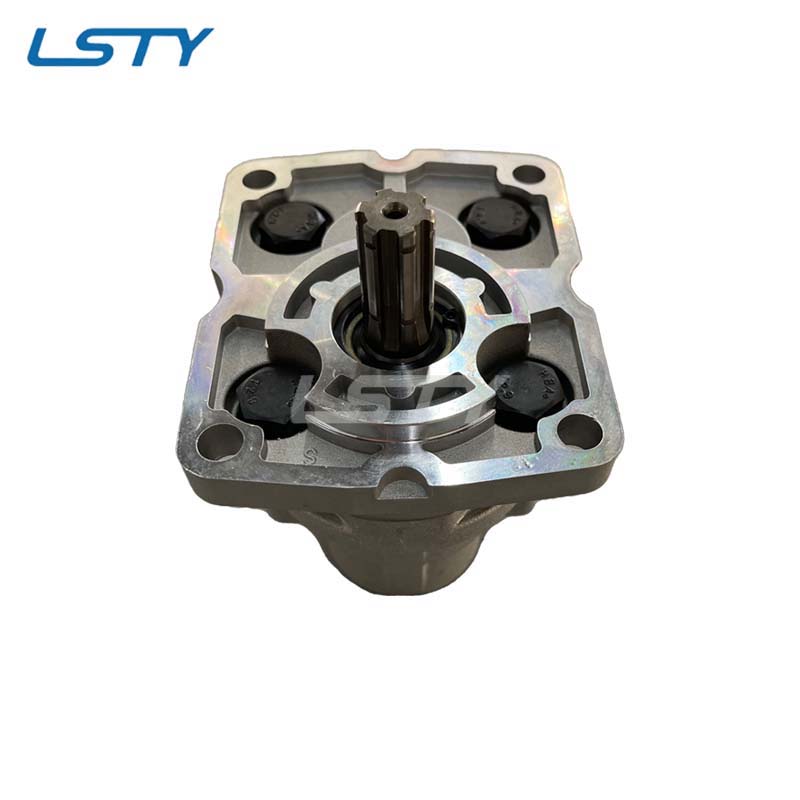

Product snapshot: NSH 10M-3 external gear pump

Origin: Jichangzhuang Village, Ningjin County, Xingtai City, Hebei, China. Lightweight aluminum housing, steel gears, GSTU/GOST mounting, NBR seals (Viton/FKM on request). MOQ ≈ 100 pieces, supply ≈ 10,000/month. Packaged in wooden case with moisture-proof film.

Materials, methods, and test flow

Aluminum alloy bodies are CNC-machined; gears are carburized steel for wear resistance. Assemblies are measured for internal leakage and volumetric efficiency under ISO 4409 protocols, with noise mapping per ISO 3744. Typical service life (with clean oil and aligned shafts) lands in the 8,000–12,000 h band. Pressure and burst checks follow ISO 4413 safety guidance. To be honest, filtration and alignment make or break longevity more than the catalog ever admits.

Where it fits

• Mobile hydraulics: skid-steers, mini-excavators, telehandlers
• Agriculture: sprayers, seeders, loaders
• Municipal/utility attachments, small marine hydraulics, light industrial machinery

Internal vs external: quick vendor snapshot

A quick case from the field

A small OEM trialed an internal gear option against an NSH external unit on a 12–14 MPa loader circuit. Under ISO 4409 bench tests, the internal gear unit showed ≈ 4–6% higher volumetric efficiency and about 3–5 dB(A) lower noise. But the NSH build (with NBR seals) won on lead time and price, so they standardized it for non-urban fleets and kept internal gear for indoor logistics where noise matters. I guess that’s a practical split many teams adopt.

Customization and QA

Options include Viton seals for higher temps, special shafts/flanges (GSTU/GOST plus custom), and two-stage units. Routine QA: pressure/flow verification (ISO 4409), cleanliness control (ISO 4406), and safety conformance (ISO 4413). Many buyers also request ISO 9001 certificates and batch traceability—worth asking during RFQ. Packing is serviceable: wooden case + buffer bag + moisture film. Nothing fancy, but it travels.

Bottom line

If you need quiet, high efficiency, go hydraulic internal gear pump. If you need rugged value with familiar mounting and fast supply, the NSH 10M-3 is a sensible pick—especially in mobile machinery where the cab isn’t whisper-quiet anyway. Either way, don’t skimp on filtration or alignment. That’s where the money is saved.

Authoritative citations

1. ISO 4409: Hydraulic fluid power—Positive-displacement pumps and motors—Methods of testing and presenting basic steady state performance.
2. ISO 4413: Hydraulic fluid power—General rules and safety requirements.
3. ISO 4406: Hydraulic fluid power—Fluids—Method for coding the level of contamination by solid particles.
4. Bosch Rexroth Internal Gear Pumps (PGH/PGF) overview: https://www.boschrexroth.com
5. Eckerle EIPH Internal Gear Pumps: https://www.eckerle.com/en/products/hydraulic-pumps/eiph-internal-gear-pumps/
6. DIN 51524: Hydraulic fluids—HLP classifications and requirements.
