Introduction to Hydraulic Monoblock Valves: Precision Control for Industrial Applications

In the realm of hydraulic systems, the hydraulic monoblock valve stands as a critical component, revered for its compact design, efficiency, and robust performance. These integral multi-way directional valves are engineered to manage fluid flow within hydraulic circuits, offering precise control over actuator movements in a wide array of industrial and mobile applications. Unlike modular systems that require multiple individual valves and intricate piping, a monoblock valve consolidates several functions into a single, cast body, significantly reducing the potential for leakage points, simplifying installation, and optimizing space.

Targeted at B2B decision-makers and engineers, this article delves into the intricacies of these essential devices, covering everything from their manufacturing precision and technical specifications to their broad application spectrum and the inherent advantages they offer. We specifically highlight products like the P80 Series 1P80, 2P80, 3P80, 4P80, 5P80, 6P80 Integral Multi-way Directional Valves, which exemplify the advanced capabilities and reliability expected in today's demanding hydraulic environments.

Industry Trends and Market Dynamics of Monoblock Control Valves

The market for monoblock control valve solutions is currently experiencing significant growth, driven by an escalating demand for more efficient, compact, and high-performance hydraulic systems across various sectors. Recent market analysis suggests the global hydraulic equipment market, which includes these valves, is projected to reach approximately USD 45 billion by 2027, growing at a CAGR of around 4-5% from 2020. Key drivers include the global push for infrastructure development, increasing automation in manufacturing, and the continuous evolution of agricultural and construction machinery requiring more sophisticated hydraulic control.

• Miniaturization and Integration: There's a strong trend towards smaller, lighter, and more integrated components. This plays directly into the strengths of the monoblock design, which reduces system complexity and weight.
• Energy Efficiency: New designs focus on minimizing pressure drops and optimizing flow paths to reduce energy consumption, crucial for meeting stringent environmental regulations and operational cost savings.
• Digitalization and IoT Integration: The integration of smart sensors and electronic controls is making hydraulic monoblock valve systems more adaptive, predictive, and remotely manageable, enhancing operational efficiency and maintenance planning.
• Durability and Corrosion Resistance: Increasing demand for valves capable of operating in harsh environments, such as those exposed to corrosive fluids or extreme temperatures, is spurring innovation in material science and surface treatments.

These trends underscore the importance of selecting robust, high-quality valves that can adapt to evolving industrial demands while providing reliable and efficient performance.

The Advanced Manufacturing Process of Hydraulic Monoblock Valves

The production of a high-quality hydraulic monoblock valve is a meticulous process demanding precision engineering and adherence to strict quality control standards. The goal is to produce a durable, leak-free, and high-performance component.

Key Materials:

Typically, the valve body is cast from high-grade grey cast iron (e.g., GG25 or EN-GJL-250) or ductile iron (e.g., GGG40), chosen for its excellent machinability, vibration damping characteristics, and pressure containment capabilities. Spools are commonly made from hardened steel alloys (e.g., 20CrMnTi, 40Cr) for superior wear resistance and strength, precision ground to achieve extremely tight tolerances.

Manufacturing Process Flow:

1. 1. Design & Simulation: Advanced CAD/CAE tools are used for initial design, fluid dynamics simulation, and structural analysis to optimize flow paths, minimize pressure drops, and ensure structural integrity under operational loads.
2. 2. Casting or Forging:
   • Casting: Molten iron is poured into molds to create the complex internal galleries and external form of the valve body. This method is cost-effective for intricate shapes.
   • Forging (less common for full monoblocks, but for components): For critical parts, forging can be used to improve material grain structure, enhancing strength and fatigue resistance.
3. 3. Machining (CNC): After casting, valve bodies undergo precise CNC (Computer Numerical Control) machining. This includes boring spool bores, drilling port connections, and milling mounting faces to achieve micron-level tolerances. Spools are also ground to a very fine surface finish to minimize friction and internal leakage.
4. 4. Deburring & Cleaning: Critical to remove any sharp edges or debris from the machining process that could impede operation or damage seals. Thorough cleaning removes contaminants.
5. 5. Surface Treatment: Depending on the application, surfaces might be treated for enhanced corrosion resistance (e.g., phosphating, zinc plating for valve body) or wear resistance (e.g., hard chrome plating for spools).
6. 6. Assembly: Skilled technicians assemble the valve components, including spools, springs, seals, and actuation mechanisms (e.g., levers, solenoids), ensuring proper alignment and functionality.
7. 7. Rigorous Testing: Every monoblock valve undergoes comprehensive functional and endurance testing.

Testing Standards & Service Life:

Valves are tested against international standards such as ISO 4411 (Hydraulic fluid power – Control components – Directional control valves – Mounting surfaces and porting), ISO 10770 (Hydraulic fluid power – Pressure-reducing valves), and ANSI B93.7. These tests verify pressure ratings, flow characteristics, internal and external leakage, operational force, and fatigue resistance. A well-manufactured hydraulic monoblock valve, when properly maintained, can achieve a service life exceeding 10,000 operational hours, often much more, depending on load cycles and environmental conditions.

Target Industries & Advantages:

These valves are indispensable in target industries such as agriculture (tractors, harvesters), construction (excavators, loaders), material handling (forklifts, cranes), municipal vehicles (snow plows, refuse trucks), and compact industrial machinery. Advantages include:

• Energy Saving: Optimized internal flow passages minimize pressure drop, reducing pump load and thus energy consumption in hydraulic systems.
• Corrosion Resistance: High-quality materials and protective surface treatments ensure longevity even in demanding, corrosive environments like those found in marine or chemical processing applications.
• Compactness: Integrating multiple functions into one body saves significant space and weight, crucial for mobile equipment.
• Reduced Leakage: Fewer sealing surfaces compared to modular systems inherently decrease potential leakage points, enhancing system reliability and environmental safety.

Image 1: Precision machined internal passages of a hydraulic monoblock valve.

Technical Specifications: P80 Series Hydraulic Monoblock Valve

The P80 Series Integral Multi-way Directional Valve is an exemplary hydraulic monoblock valve, designed for robust performance in demanding mobile and industrial hydraulic applications. Available in configurations from 1P80 up to 6P80, these valves offer versatile control options and reliable operation. Below is a detailed table outlining key specifications:

P80 Series Product Specification Table

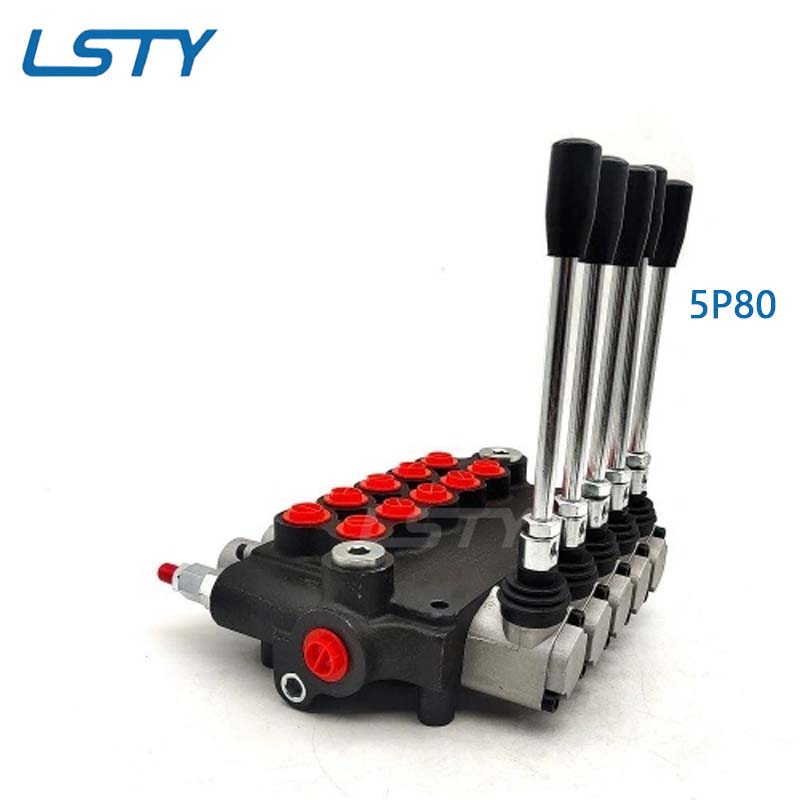

Image 2: A P80 series monoblock valve with manual lever actuation.

These specifications underscore the versatility and robust engineering of the P80 series, making it suitable for a wide range of mobile and industrial machinery where precise and reliable hydraulic control is paramount.

Application Scenarios and Technical Advantages

The inherent design and performance characteristics of the hydraulic monoblock valve make it ideal for a diverse array of applications demanding high reliability and precise control. Its integrated nature provides several technical advantages over traditional modular valve systems.

Typical Application Scenarios:

• Agricultural Machinery: Used in tractors, combine harvesters, front loaders, and agricultural implements for controlling hydraulics for steering, lifting, tilting, and operating various attachments. Their robustness suits harsh outdoor conditions.
• Construction Equipment: Essential for mini excavators, backhoe loaders, skid-steer loaders, and compact utility vehicles. They provide precise control over buckets, booms, and other hydraulic tools, enhancing operational efficiency and safety.
• Material Handling Equipment: Found in forklifts, stackers, and small cranes, controlling lift, tilt, and attachment functions. The compact design is beneficial in confined spaces.
• Municipal Vehicles: Applications include refuse trucks (compaction and lifting mechanisms), snow plows (blade positioning), and street sweepers, where multi-functionality and reliability are key.
• Forestry and Logging: In log splitters, grapples, and small forestry cranes, these valves ensure powerful and controlled movements of heavy loads.

Technical Advantages:

• Compact Design & Space Efficiency: By integrating multiple functions into a single block, the monoblock valve significantly reduces the overall footprint and weight of the hydraulic system, which is crucial for mobile machinery where space is at a premium.
• Reduced Leakage Points: Fewer connections and seals mean a substantial reduction in potential leakage points. This enhances system reliability, minimizes fluid loss, and reduces environmental impact.
• Simplified Plumbing & Installation: The integrated design streamlines hydraulic plumbing, leading to faster, easier, and less error-prone installation. This also simplifies maintenance and troubleshooting.
• Improved System Performance: Optimized internal flow passages result in lower pressure drops and higher volumetric efficiency. This contributes to energy savings, as the pump needs less power to move fluid, and allows for more precise and responsive control of actuators.
• Enhanced Durability & Corrosion Resistance: The robust cast body and high-quality materials, often coupled with specialized surface treatments, provide exceptional resistance to mechanical stress, vibration, and corrosive elements, ensuring a longer service life even in harsh operating environments.
• Cost-Effectiveness: While the initial unit cost might be comparable to some modular setups, the overall system cost is often lower due to reduced plumbing, fewer components, faster assembly, and lower long-term maintenance needs.

Image 3: Diverse applications benefit from the compact design of a hydraulic monoblock valve.

These advantages collectively position the hydraulic monoblock valve as a superior choice for a wide range of mobile and compact industrial machinery, driving efficiency and reliability in critical hydraulic functions.

Vendor Comparison: Choosing the Right Monoblock Control Valve Partner

Selecting the right vendor for hydraulic manual spool monoblock valves is a critical decision that impacts system performance, reliability, and total cost of ownership. Beyond initial purchase price, factors such as product quality, technical support, customization capabilities, and after-sales service are paramount. Here's a comparative overview highlighting key considerations and how a reputable vendor like AUTOLSTY positions itself.

Key Factors for Vendor Evaluation:

• Product Quality & Reliability: Adherence to international manufacturing and testing standards (ISO, CE). Material quality, precision engineering, and robust construction.
• Technical Expertise & Support: Availability of experienced engineers for consultation, system design, and troubleshooting. Comprehensive documentation and training.
• Customization & Flexibility: Ability to provide tailored solutions for specific application requirements, including custom spool configurations, porting, and actuation options.
• Lead Time & Logistics: Efficient production processes and supply chain management to ensure timely delivery and minimize project delays.
• Warranty & After-Sales Service: Clear warranty policies, readily available spare parts, and responsive customer support for long-term operational assurance.
• Cost-Effectiveness: A balance between competitive pricing and long-term value derived from product performance, durability, and support.

Vendor Comparison Table (Illustrative):

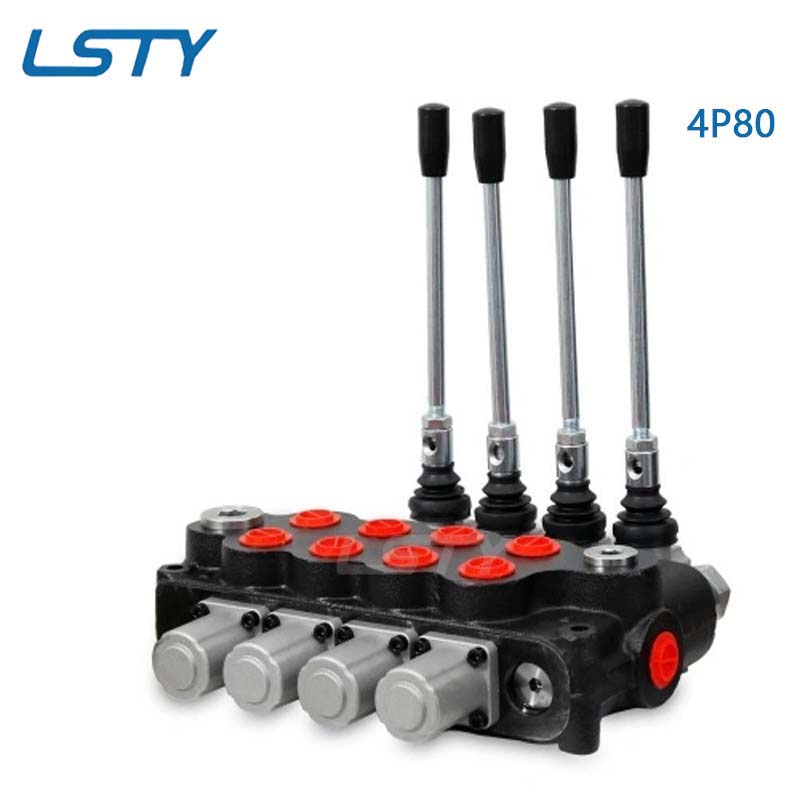

Image 4: Diverse configurations of a monoblock control valve.
