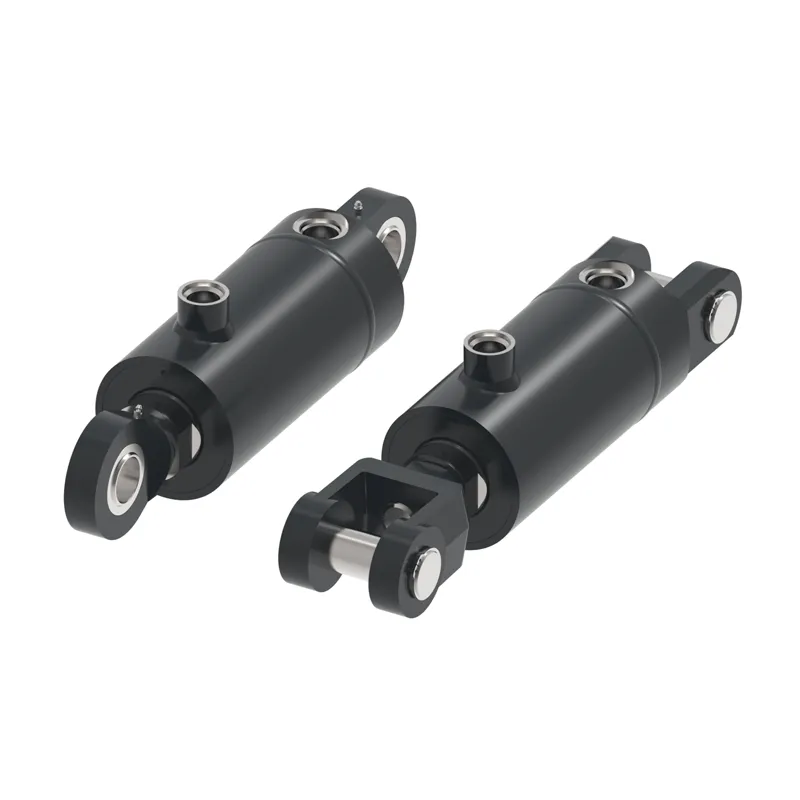

Double Acting Hydraulic Cylinder Design

In the relentless world of heavy machinery, where multi-ton loads demand unwavering control, the double acting hydraulic cylinder stands as an engineering cornerstone. This masterwork of fluid power transforms pressurized oil into precise bidirectional force, enabling excavators to dig, presses to mold, and cranes to lift with orchestrated power. Unlike single-acting counterparts relying on gravity or springs for retraction, true double acting designs harness hydraulic energy for both extension and retraction strokes – delivering unparalleled control in demanding applications. For over two decades, HEBEI LONGSHENGTENGYU PUMP INDUSTRY CO., LTD (LSTY) has refined this art, merging 20+ hydraulic utility patents with hands-on field experience across three continents. Their philosophy – "power products, ensured quality" – manifests in cylinders engineered not just to move loads, but to outlast them.

Core Principles of Double Acting Hydraulic Cylinder Architecture

The genius of a double acting hydraulic cylinder lies in its symmetrical force delivery. Pressurized fluid enters Port A to extend the rod, while Port B simultaneously allows exhaust fluid to return to the reservoir. To retract, the flow reverses: pressure enters Port B, forcing fluid from Port A back to the tank. This bidirectional control demands precision in three critical design zones:

• Pressure-Containment Barrel: LSTY uses honed DOM (Drawn Over Mandrel) steel tubing. This minimizes friction
• Asymmetric Piston Design: While equal force in both directions seems ideal, most industrial applications require higher extension force. LSTY engineers calculate optimal piston area ratios using FEA analysis, ensuring balanced performance without oversizing components.
• Dynamic Sealing Systems: Twin seal stacks on the piston – one for pressure, one for scrapers – prevent internal leakage.

These principles converge in double ended hydraulic cylinder variants, where rods protrude from both ends. Commonly used in hydraulic presses or steering systems, this configuration demands extreme parallelism between mounting points to prevent side-loading. LSTY achieves this through CNC-guided grinding of rod eyes after welding – a step many budget manufacturers skip.

Double Rod Hydraulic Cylinder: Precision in Symmetry

When equal force and speed in both directions are non-negotiable, the double rod hydraulic cylinder becomes the engineer’s choice. By extending rods from both piston faces, these cylinders provide identical piston areas on each side. The implications are transformative:

• Force Balance: Equal extension/retraction force enables precision tasks like robotic welding positioners.
• Speed Consistency: Identical flow requirements allow synchronous movement without complex valving.
• Mounting Flexibility: Dual rods permit through-machine mounting in conveyor systems or injection molders.

LSTY counters the inherent challenge – increased length – through innovative rod gland designs:

Tapered roller bearings replace bushings in high-misalignment applications

Wiper seals integrate chip-clearing grooves for contaminated environments

Their experience in double acting hydraulic cylinder production for Belarusian harvesters demonstrates this: dual-rod cylinders power grain chute controllers .

Double Rod Hydraulic cylinder:Application-Specific Design Strategies

• Mobile Machinery (Tractors/Loaders)
• Snubber valves integrated into rod glands cushion end-of-stroke impacts
• Compact cartridge-style check valves prevent bucket drift
• LSTY’s agricultural cylinders feature dual wiper seals for mud exclusion
• Industrial Presses
• Guided double rod hydraulic cylinderdesigns with linear bearings maintain ±0.05mm parallelism
• Positional feedback via built-in magnetostrictive transducers
• For Middle Eastern clients, LSTY adds ceramic-coated rods resisting abrasive dust
• Hydraulic Bending Machines

Through-rod double ended hydraulic cylinder configurations apply equal force to die sets

FAQs about Double Acting Hydraulic Cylinder Engineering

Why choose double acting hydraulic cylinders over single acting hydraulic cylinders?

Double acting designs provide controlled force in both directions, enabling precision tasks like positioning or pressing. Single acting cylinders rely on external forces for retraction, limiting control. For applications requiring bidirectional power—such as excavator booms or industrial presses—double acting is essential.

What distinguishes double ended hydraulic cylinders from standard designs?

Double ended configurations feature rods protruding from both barrel ends, providing force symmetry and mounting flexibility. They’re ideal when space allows rod extension at both sides, such as in hydraulic clamps or conveyor drives. Standard cylinders have a single rod.

When should I specify double rod hydraulic cylinders?

Specify them when equal speed/force in both directions is critical, or when through-machine mounting is required. Common in robotics, injection molding, and precision machining.

How do LSTY’s double acting hydraulic cylinders handle extreme contamination?

Three-tiered defense:

• Hard-chromed rods with micro-polishing reduce particle adhesion
• Piston scrapers prevent abrasive ingress into the pressure chamber.
•

Can I get custom port configurations for double acting hydraulic cylinders?

Yes. LSTY’s R&D center regularly engineers side-ported, angled, or manifold-integrated connections.

Designing double acting hydraulic cylinders is an exercise in controlled violence – channeling immense power through precisely honed channels. Every micron of clearance, every alloy selection, every seal geometry conspires to transform brute hydraulic force into elegant motion. HEBEI LONGSHENGTENGYU PUMP INDUSTRY CO., LTD elevates this science through relentless refinement. From their four-engine operational model ensuring seamless collaboration between design and manufacturing, to their global technical support network, LSTY treats every cylinder not as a commodity, but as a kinetic sculpture. As hydraulic systems evolve toward electrification and IoT integration, the principles embedded in their DA-Series cylinders – symmetry, durability, and adaptable force – remain timeless. For when the world needs to move mountains, it still trusts the humble cylinder.
