XL Star-shaped Elastic Coupling High-torque Flexible Couplings for Construction Machinery

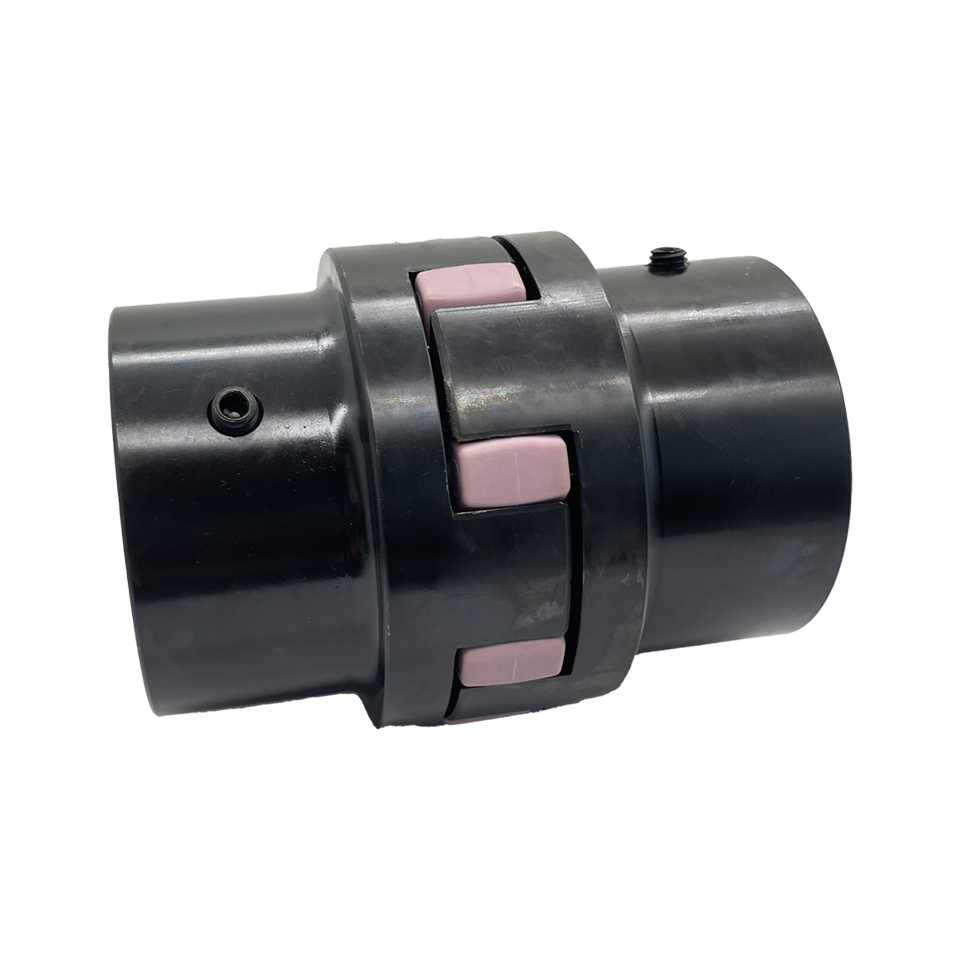

Detailed Images
Product Description
Star-shaped Elastic Coupling
▶Polyurethane elastomer is limited by a convex claw block, which can avoid the internal deformationcaused by the impact and the external deformation produced by centrifugal force.
▶The large surface of convex claw, which can reduce the pressure on the surface of the involute tooth;
▶Can compensate the relative deviation, buffer, shock absorption, abrasion resistance of the two axles;
▶Be suitable for the connection of transmission shaft for two coaxial lines, which is widely used.

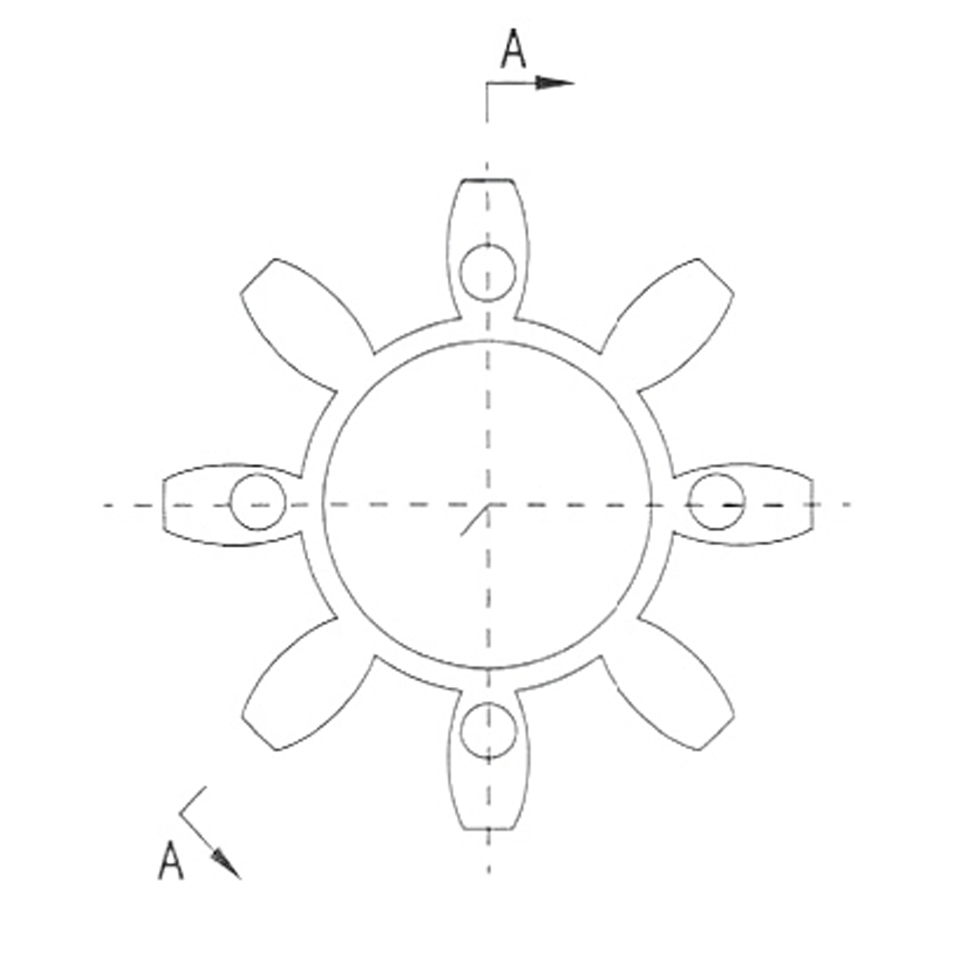

Product Dimensions
Product Parameter
|
Model No.
|
HD
|
d1,d2
Maxmum
|
l1,l2
Mazmum
|
E
|
L
|
D
|
Value number
|
N.m
n.ominaltorque
|
r/min
Allowable
rotating speed
|
| XL1 | 38 | 22 | 25.5 | 15 | 66 | 18 | 6 | 20 | 1900 |
| XL2 | 53 | 32 | 30.25 | 17.5 | 78 | 28 | 8 | 70 | 1400 |
| XL3 | 63 | 35 | 35.5 | 19 | 90 | 30 | 8 | 190 | 11800 |
| XL4 | 78 | 42 | 46 | 22 | 114 | 39 | 8 | 380 | 9800 |
| XL5 | 93 | 50 | 51 | 24 | 126 | 45 | 8 | 530 | 8000 |
| XL6 | 103 | 55 | 57 | 26 | 140 | 51 | 8 | 620 | 7100 |
| XL7 | 118 | 65 | 66 | 28 | 160 | 60 | 8 | 820 | 6300 |
| XL8 | 135 | 75 | 76.5 | 32 | 185 | 68 | 8 | 1250 | 5600 |
| XL9 | 157 | 90 | 87 | 36 | 210 | 80 | 10 | 1950 | 4750 |
Our Advantages
Q: what's your advantages?
A: Great after-sales service(12month); With the long term cooperation with famous logistics and express company in China,provide the better goods service.
After-Sales Service
1. One year warranty
2. Have professional personnel to take over the after-sales project.
3. If it is caused by use, a full set of replacement parts can be sold on request.
